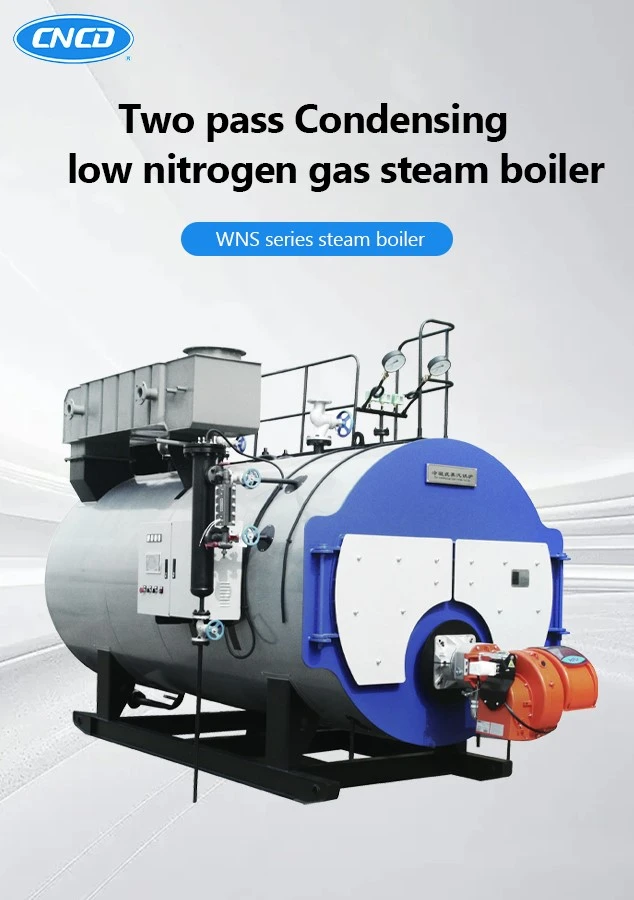

Name: Tuam Tshoj Ob Txoj Kev Condensing Tsawg Nitrogen Gas Chav Boiler Chaw tsim khoom, chaw muag khoom, Hoobkas - Huayuan
Brand: CNCD
SKU: 294849126

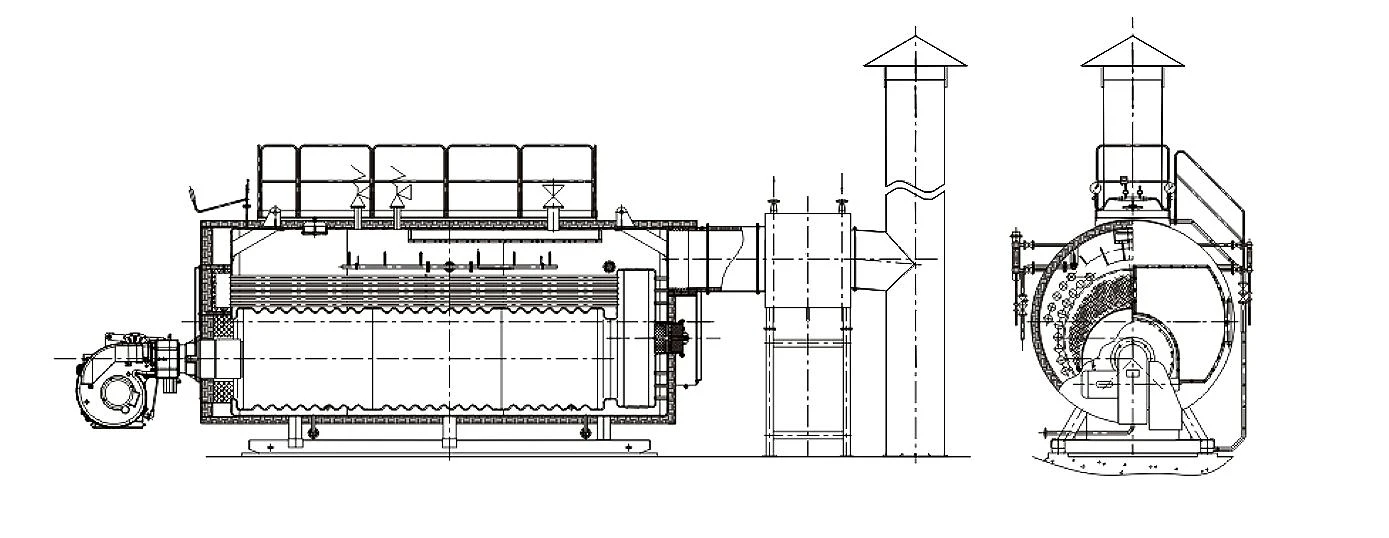

Kev khiav hauj lwm txoj cai

Thawj zaug ncig mus ncig - hluav taws xob pauv hluav taws xob

Gas tau hlawv tag nrho nyob rau hauv lub corrugated rauv chamber, uas ua rau siab - kub thiab flue gas. Lub qhov cub chamber yog nyob ib puag ncig los ntawm dej, thiab qhov siab - cov pa hluav taws kub hloov pauv feem ntau ntawm cov cua sov mus rau lub qhov cub dej los ntawm hluav taws xob hloov hluav taws xob.

Kev mus ncig thib ob - convective tshav kub hloov

Tom qab tawm hauv lub cub tawg, siab -kub flue gas tsis nkag mus rau peb pawg ntawm cov kav dej, tab sis ncaj qha nkag mus rau lub peev xwm loj convection flue nyob rau pem hauv ntej lossis sab. Cov raj kub kub sib txawv yog teem rau hauv lub flue, thiab cov pa roj flue ua rau muaj zog hloov pauv cua sov.

Core condensation theem - latent tshav kub rov qab

Cov pa roj flue uas tau ua tiav cov cua kub hloov pauv nkag mus rau qhov siab -kev ua tau zoo condensing heat exchanger. Cov dej vapor condenses mus rau hauv dej, tso ib tug loj npaum li cas ntawm latent tshav kub ntawm vaporization thiab rov qab los. Cov dej condensed tau tso tawm, thiab qhov qis - cov pa roj cua kub yog qhov kawg los ntawm cov kiv cua induced.

Tsawg nitrogen combustion thoob plaws hauv tag nrho cov txheej txheem

Pib los ntawm ignition, xyuas kom meej tias cov combustion kub yog maj mam thiab suppress lub tiam ntawm nitrogen oxides los ntawm qhov chaw.

Nta thiab qhov zoo

Simplify tus qauv thiab optimize tus txheej txheem
Cov qauv compact dua, ntim me me, sib dua yuag, thiab qis dua cov pa luam yeeb
Tsom ntsoov rau kev ua kom zoo condensation thiab zoo heev uas tsis muaj load
Lub zog sib sib zog nqus-txuag muaj peev xwm, sai sai ua kom pom kev ua haujlwm zoo
Khaws tag nrho cov yam ntxwv ntawm cov niaj hnub high -kawg boilers
Tag nrho tsis siv neeg ntse tswj, ntau yam kev tiv thaiv kev nyab xeeb, tsis tshua muaj nitrogen emissions (NOx<30mg/m ³)

Parameter

Qauv	Rated evaporation tus nqi (t / h)	Rated Ua haujlwm Siab (MPa)	Saturated Chav Kub (degree)	Kub Kev ua tau zoo (%)	Natural gas noj (m³)	Shipping Nyhav(t)
NWS 1-1.0-Q	1	1.0/1.25/1.6	184/194/204	103.2	76.2	5.7
NWS 1.5-1.0-Q	1.5	1.0/1.25/1.6	184/194/204	103.2	114.6	6.5
NWS 2-1.0-Q	2	1.0/1.25/1.6	184/194/204	103.1	152.8	8.3
NWS 3-1.25-Q	3	1.0/1.25/1.6	184/194/204	103.2	229.2	9.1
NWS 4-1.25-Q	4	1.0/1.25/1.6	184/194/204	103.2	305.3	12.1
NWS6-1.25-Q	6	1.0/1.25/1.6	184/194/204	103.2	458.2	15.2
NWS 8-1.25-Q	8	1.0/1.25/1.6	184/194/204	103.2	611	18.6
NWS 10-1.25-Q	10	1.0/1.25/1.6	184/194/204	101.4	762.4	21.3
NWS 15-1.25-Q	15	1.0/1.25/1.6	184/194/204	101.2	1145.5	32.5
NWS20-1.25-Q	20	1.0/1.25/1.6	184/194/204	101.3	1527.3	38.6

(* Rau kev siv nkaus xwb)

Kev siv yooj yim

Cov chav ntxhua khaub ncaws, chav ua noj hauv nruab nrab, cov pas dej da dej, thiab hauv cheeb tsam cua sov hauv cov tsev so loj, tsev kho mob, tsev kawm ntawv, thiab cov chaw lag luam.
Steaming, sterilization, disinfection, thiab tu txheej txheem rau hauv nruab nrab chav ua noj, ci ci factories, mis nyuj factories, thiab breweries nyob rau hauv cov khw noj mov saw
Cov txheej txheem cua sov, humidification, thiab cua sov hauv cov khoom siv hluav taws xob, cov chaw tsim khoom, cov cuab yeej ntsuas ntsuas, thiab cov chaw ua haujlwm me me
Cov thee qub, tsis muaj txiaj ntsig, thiab cov thee tsis zoo- yuav tsum tau hloov pauv los yog cov roj boilers zoo tib yam, tab sis lub hauv paus hauv paus chav boiler, qhov chaw, los yog lifting channel raug txwv.

Pom kev sib piv nrog peb rov qab boiler

Ob txoj kev condensing boiler	Peb txoj kev (WNS) condensing boiler
Simplicity, luv flue gas ntws, thiab ntau concentrated tsim ntawm convection thiab condensation seem.	Classic, ntev flue gas txheej txheem, rauv hluav taws xob + thib ob / thib peb rov qab convection + tail condensation
Ntau compact thiab hnav	Sib npaug loj thiab hnyav dua.
Tshwj xeeb tshaj yog haum rau tej yaam num uas txwv qhov chaw thiab loj load hloov.	Kev siv dav tshaj plaws, cov cuab yeej siv tau zoo tshaj plaws, thiab ua tiav tag nrho hauv kev ua lag luam.
